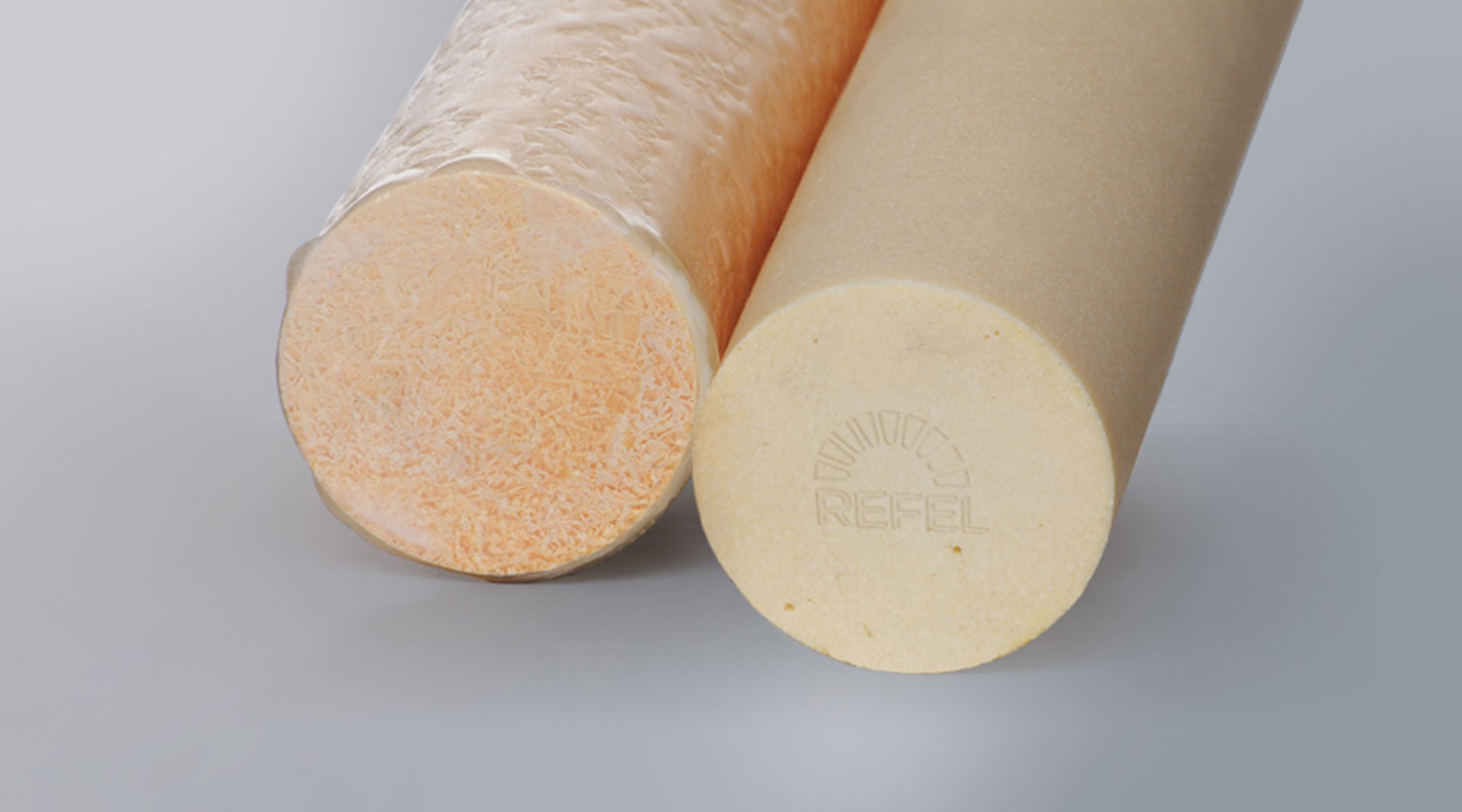

REFEL 1616ULX

REFEL 1616ULX is a fused cast AZS product with an exclusive composition of the glassy phase and ultra-low exudation behaviour. In comparison to all available products on the market, REFEL 1616ULX shows almost no glassy phase exudation, even after several heat-up and cool-down cycles.

REFEL 1616ULX

Title:

Description:

  • MICROGRAPH
  • PHYSICAL DATA
  • TYPICAL CHEMICAL COMPOSITION
  • TYPICAL MINERALOGICAL COMPOSITION
  • THERMAL EXPANSION
  • EXUDATION ACCORDING TC-11
  • CASTING TYPE
MICROGRAPH
PHYSICAL DATA
Cold crushing strength1 >200 N/mm2
Refractoriness under load (T05)2 1650°C
Exudation at 1550°C3 index 0.34 (referred to 1532 material)
True density4 3.52 g/cm3

1 DIN EN 993-5
2 DIN EN ISO 1893
3 ICG TC11, 10 cycles
4 DIN 66137-2

REFEL 1616ULX blocks are used for superstructure. The shapes and sizes of these blocks vary widely.
For this reason, REFEL will examine the feasibility of each block individually.

TYPICAL CHEMICAL COMPOSITION
TYPICAL MINERALOGICAL COMPOSITION
THERMAL EXPANSION
EXUDATION ACCORDING TC-11

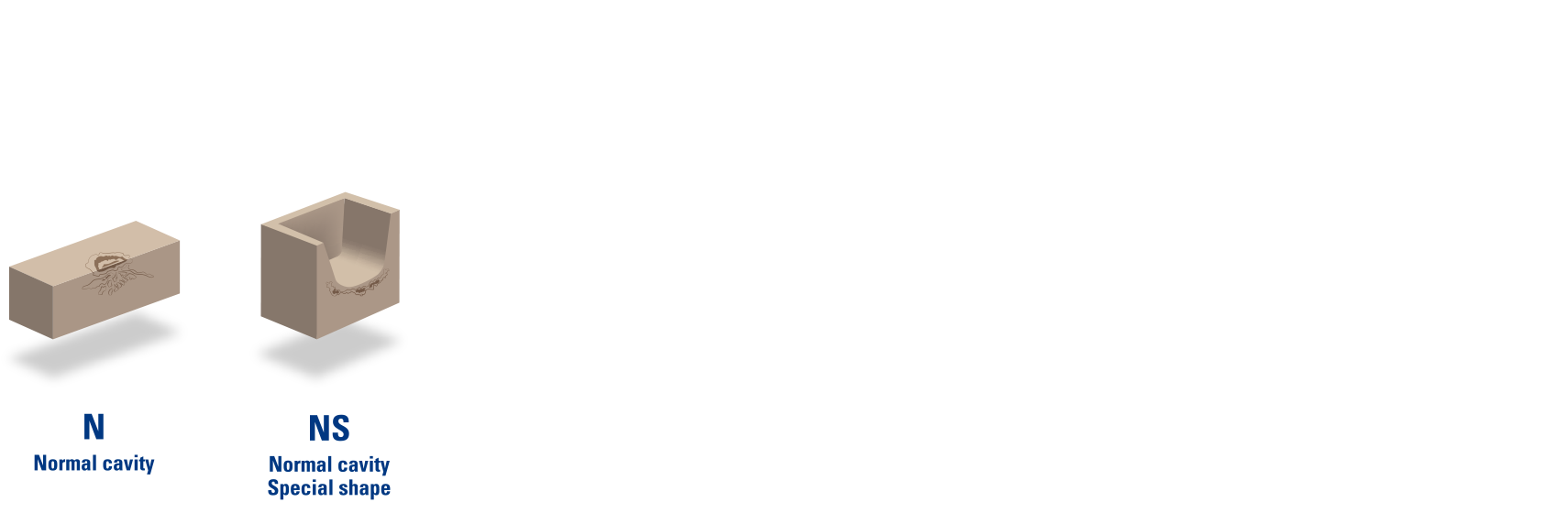

CASTING TYPE
Contact us for
Technical data sheet
Contact us for
Catalog
For sizes please contact
REFEL Engineering Service
